Description
SPECIFICATIONS
Brand Name: PSVANE
Certification: none
Maximum Power Per Channel: NO POWER
Maximum Power Per Channel: NO POWER
Origin: Mainland China
Model Number: HIFI-EL34C
Hign-concerned Chemical: None
Origin: Mainland China
Choice: yes
semi_Choice: yes

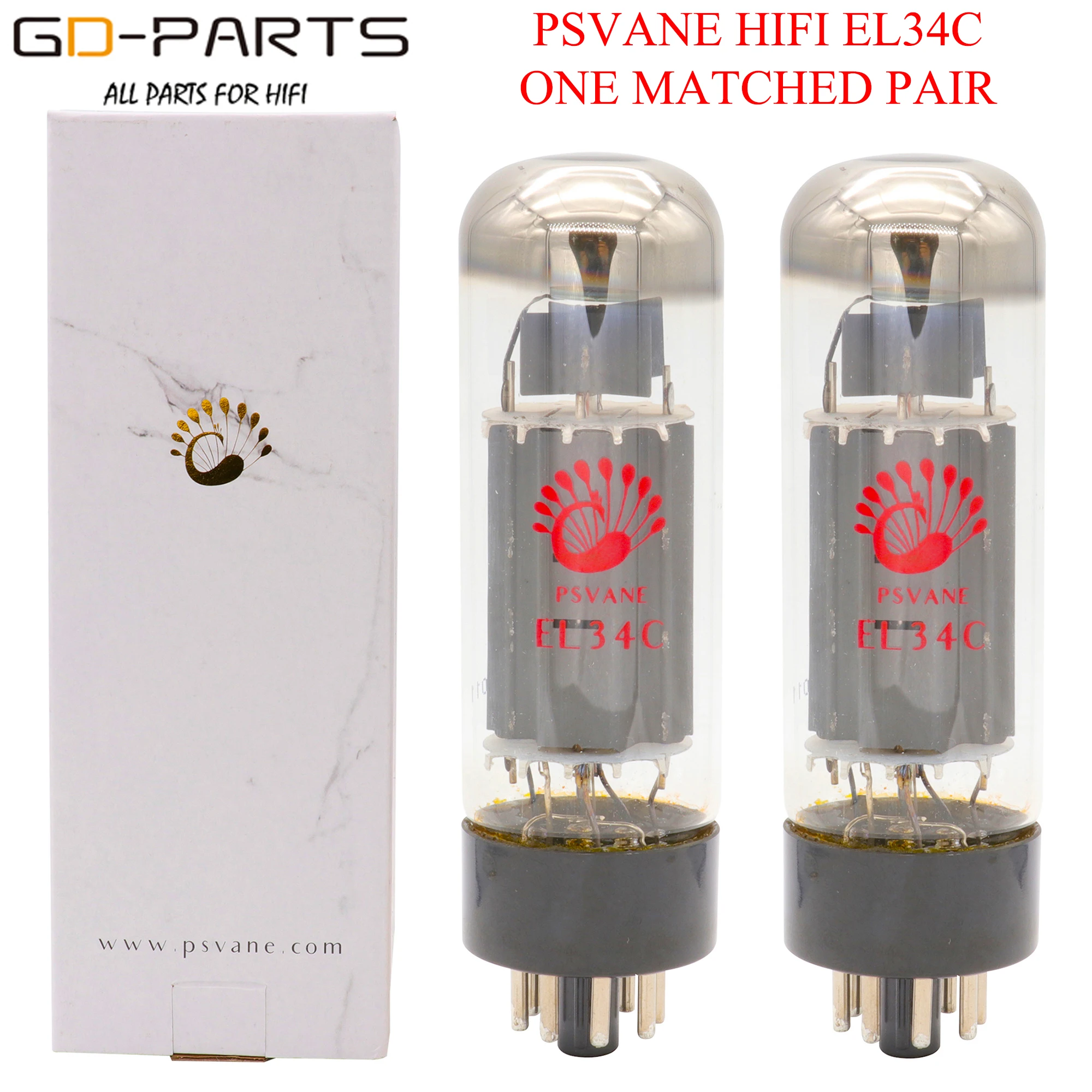

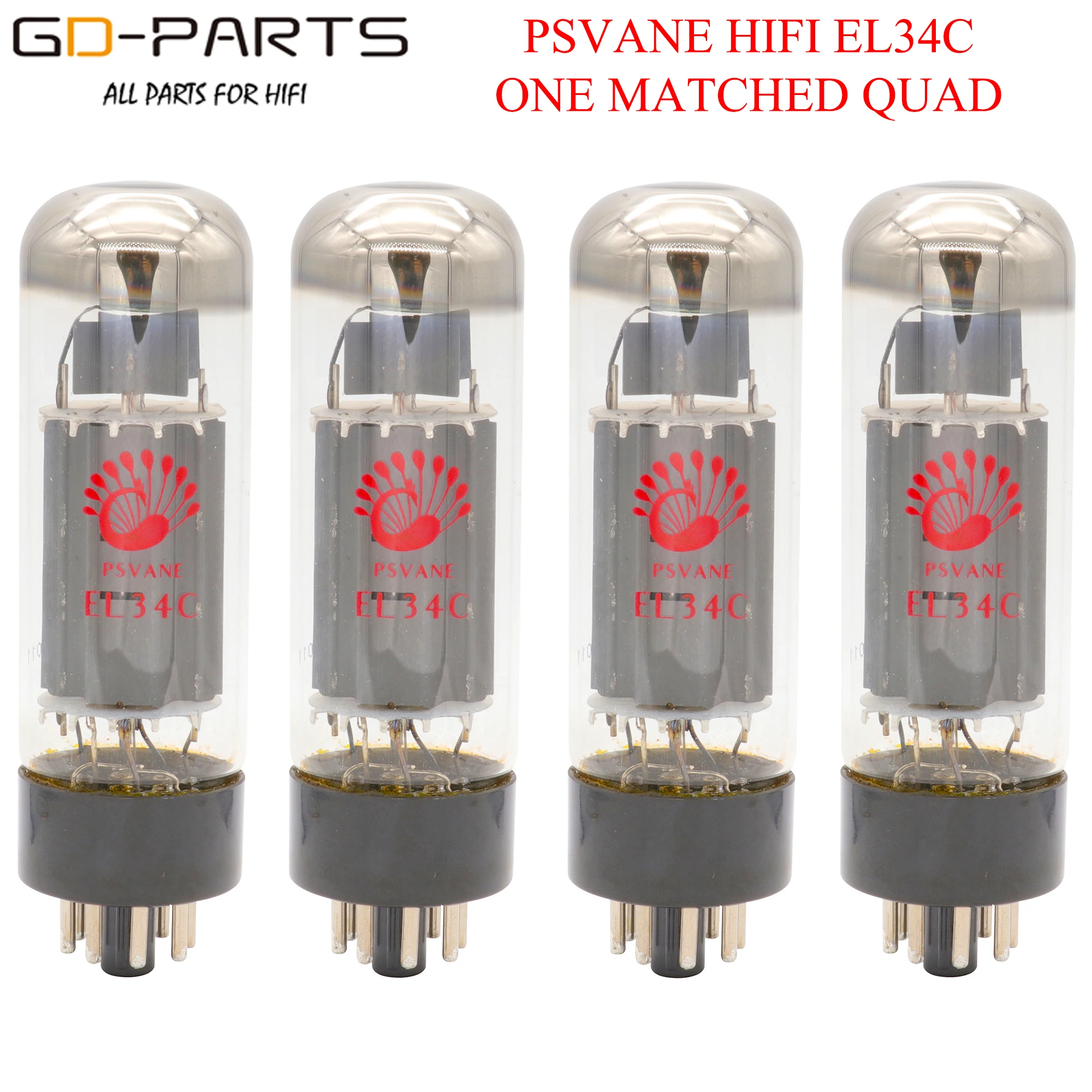

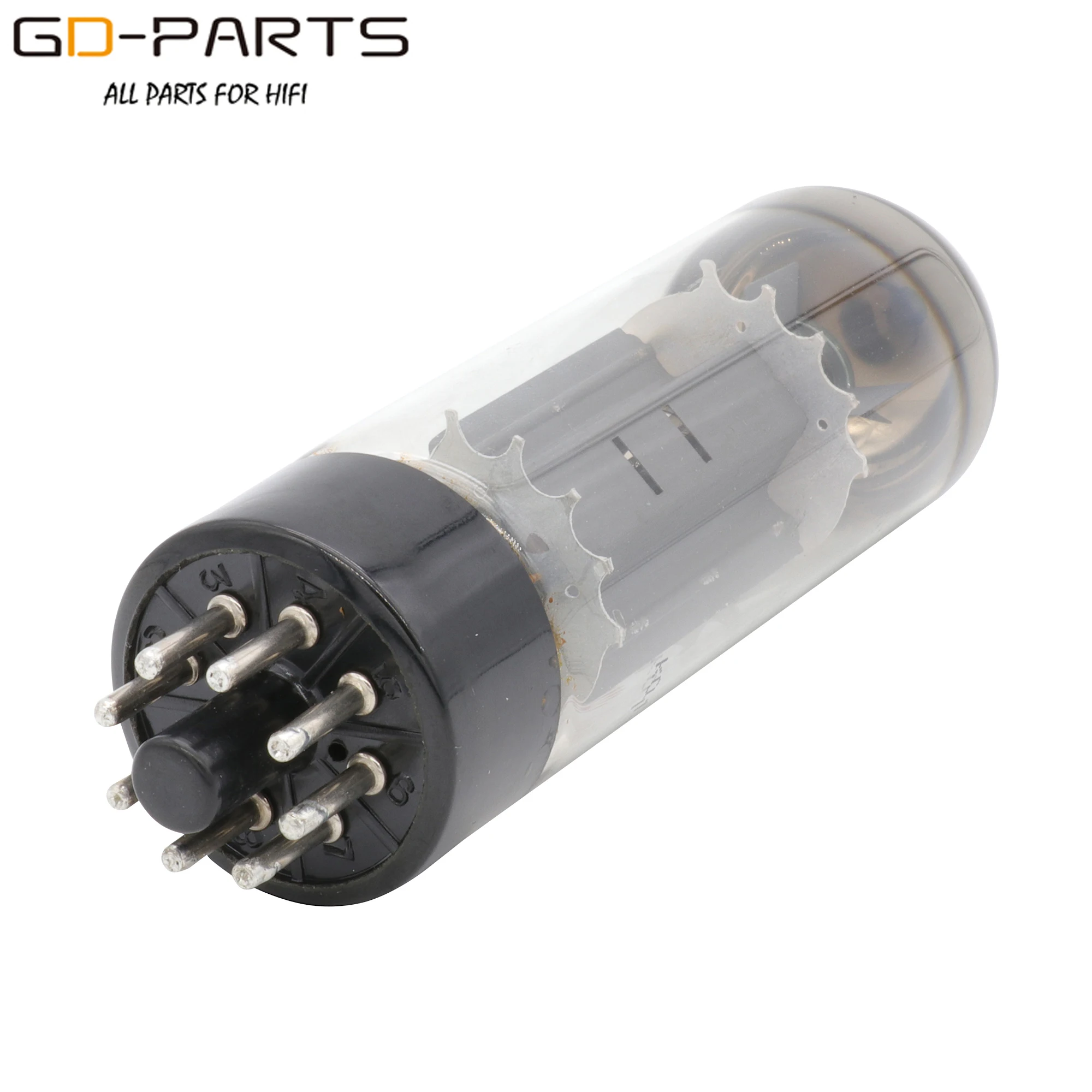

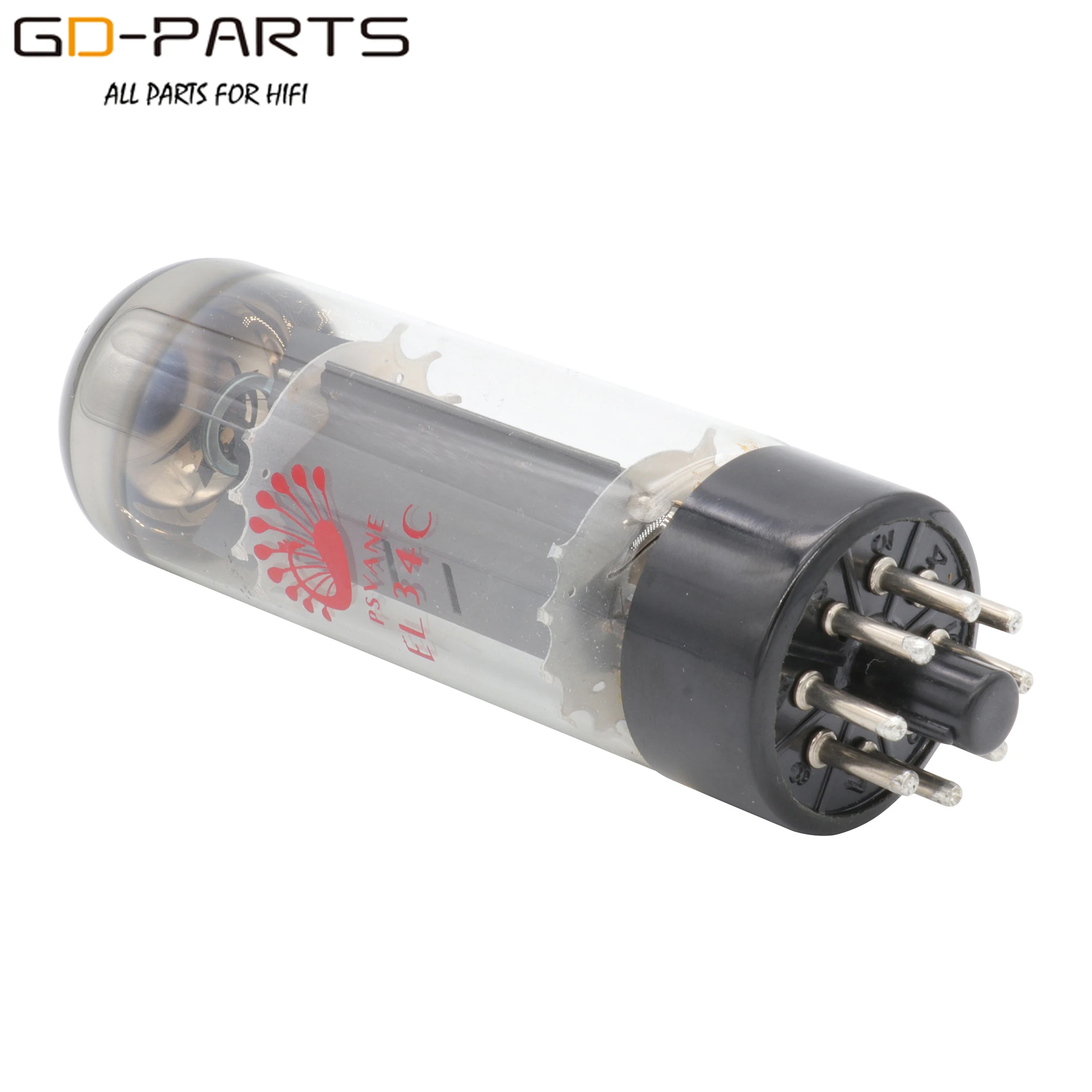

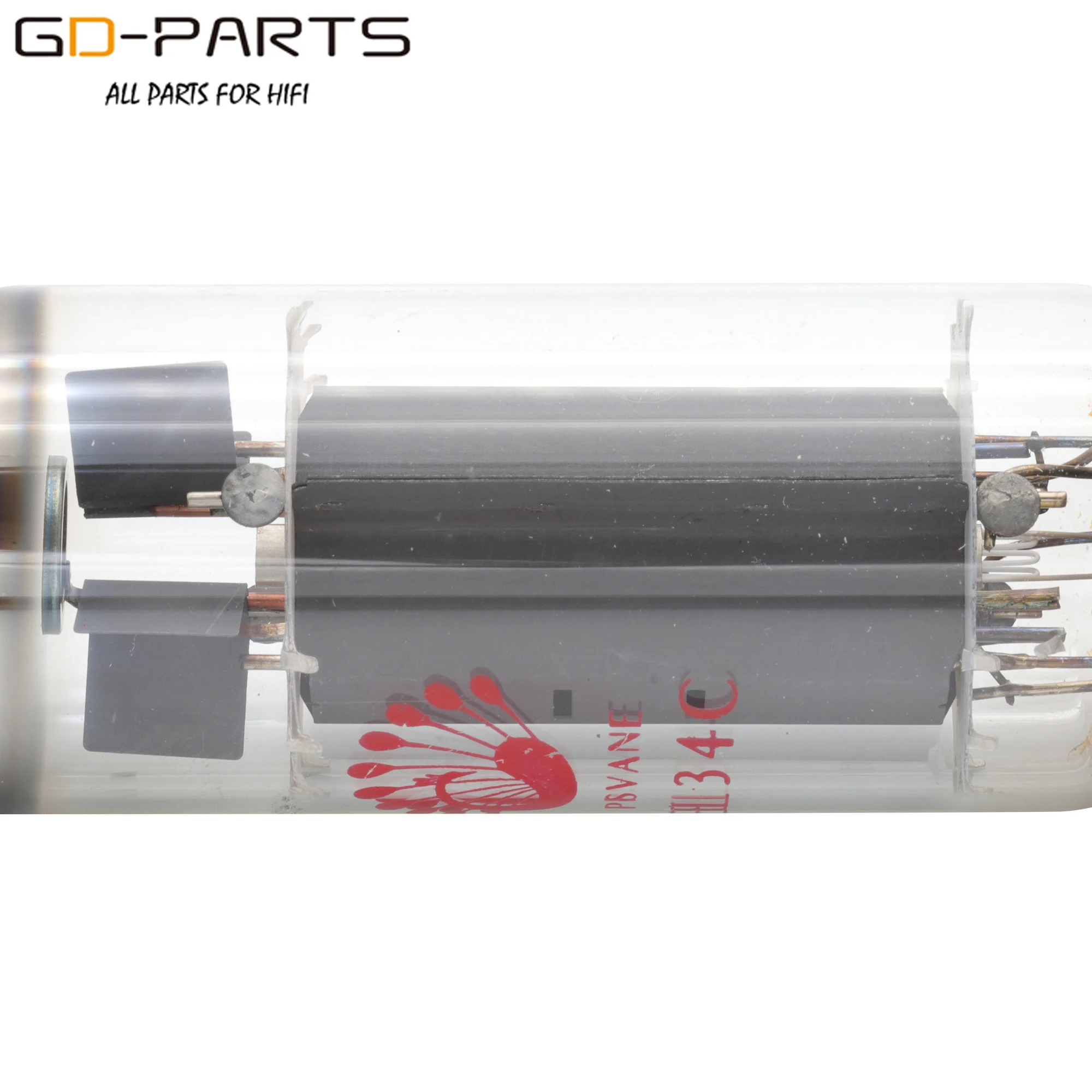

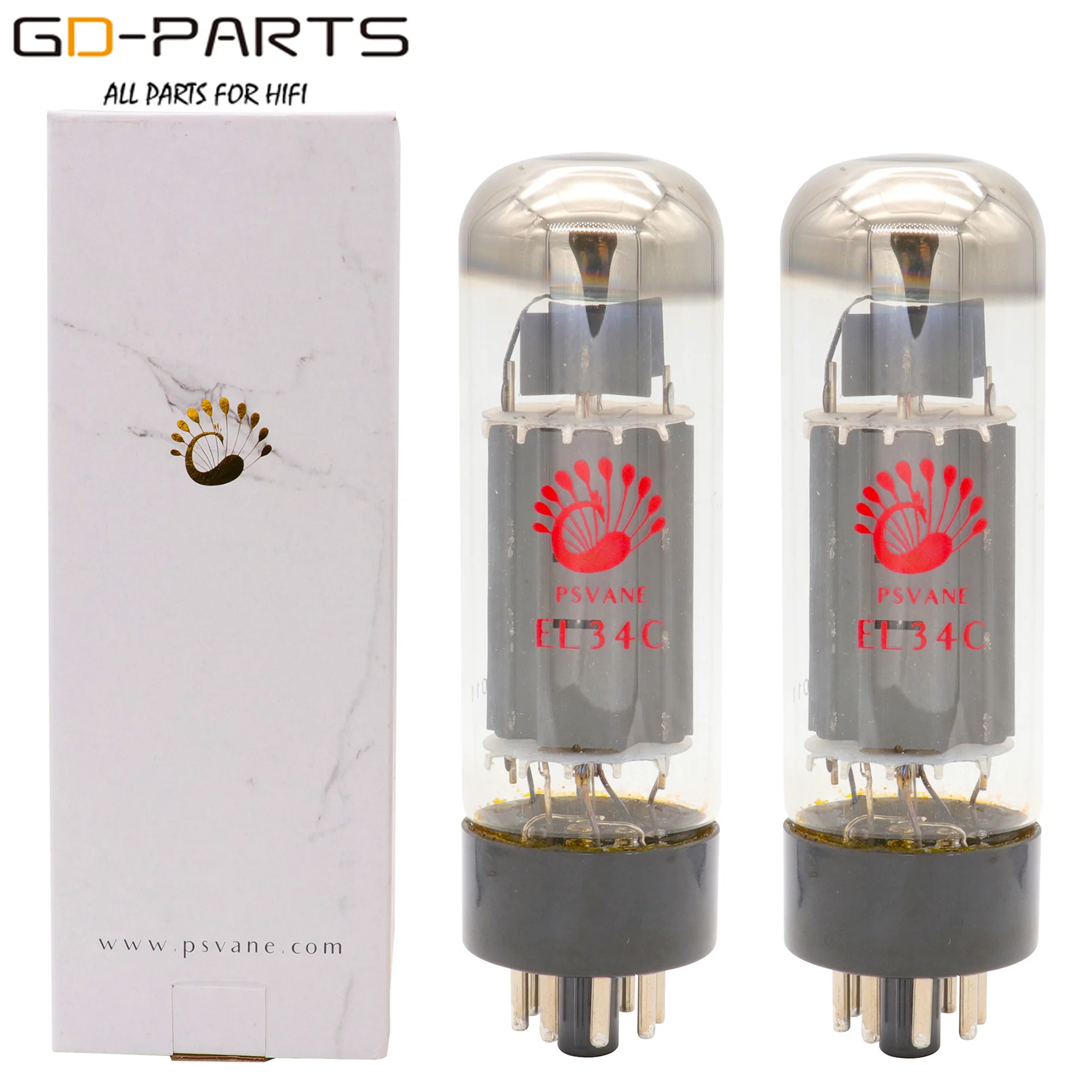

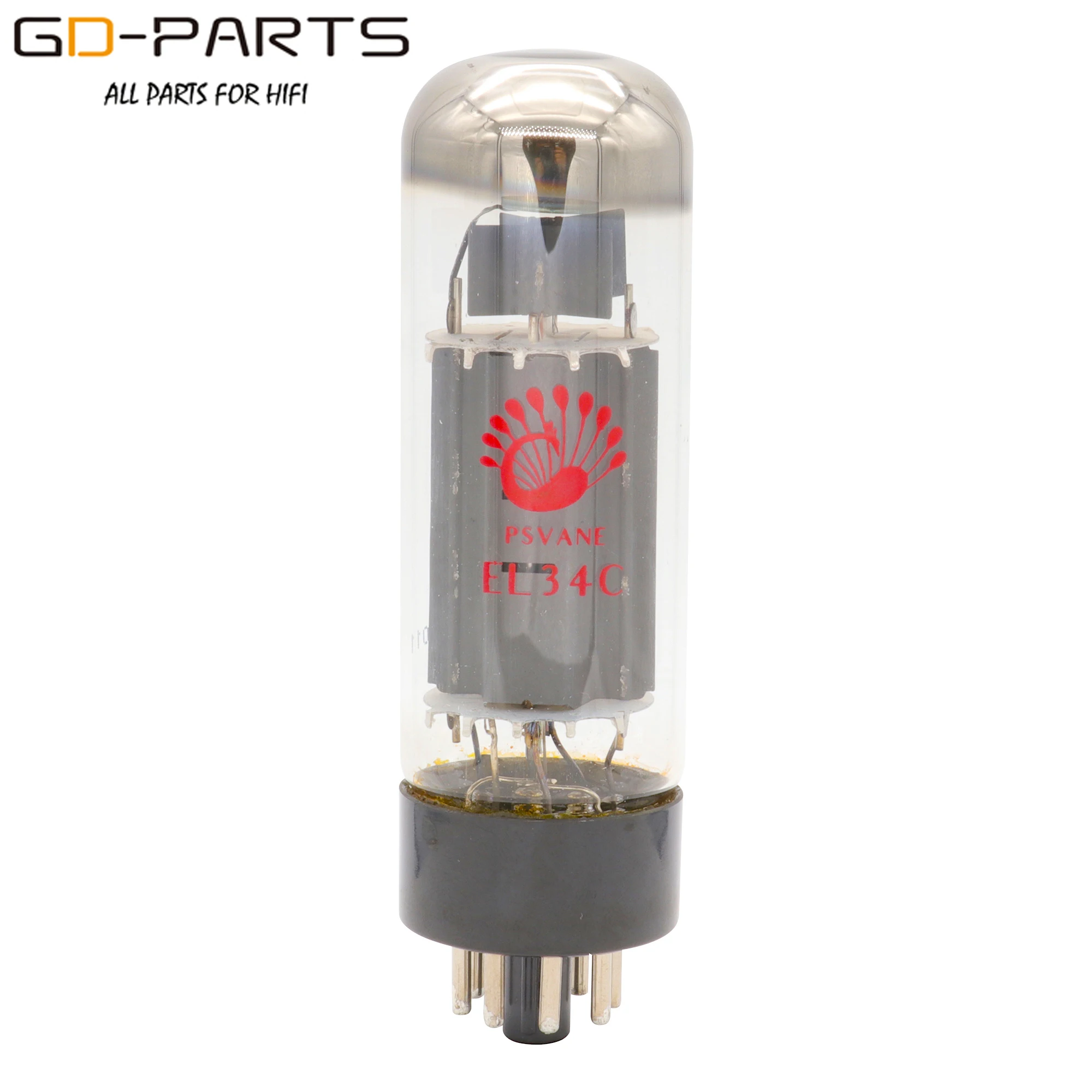

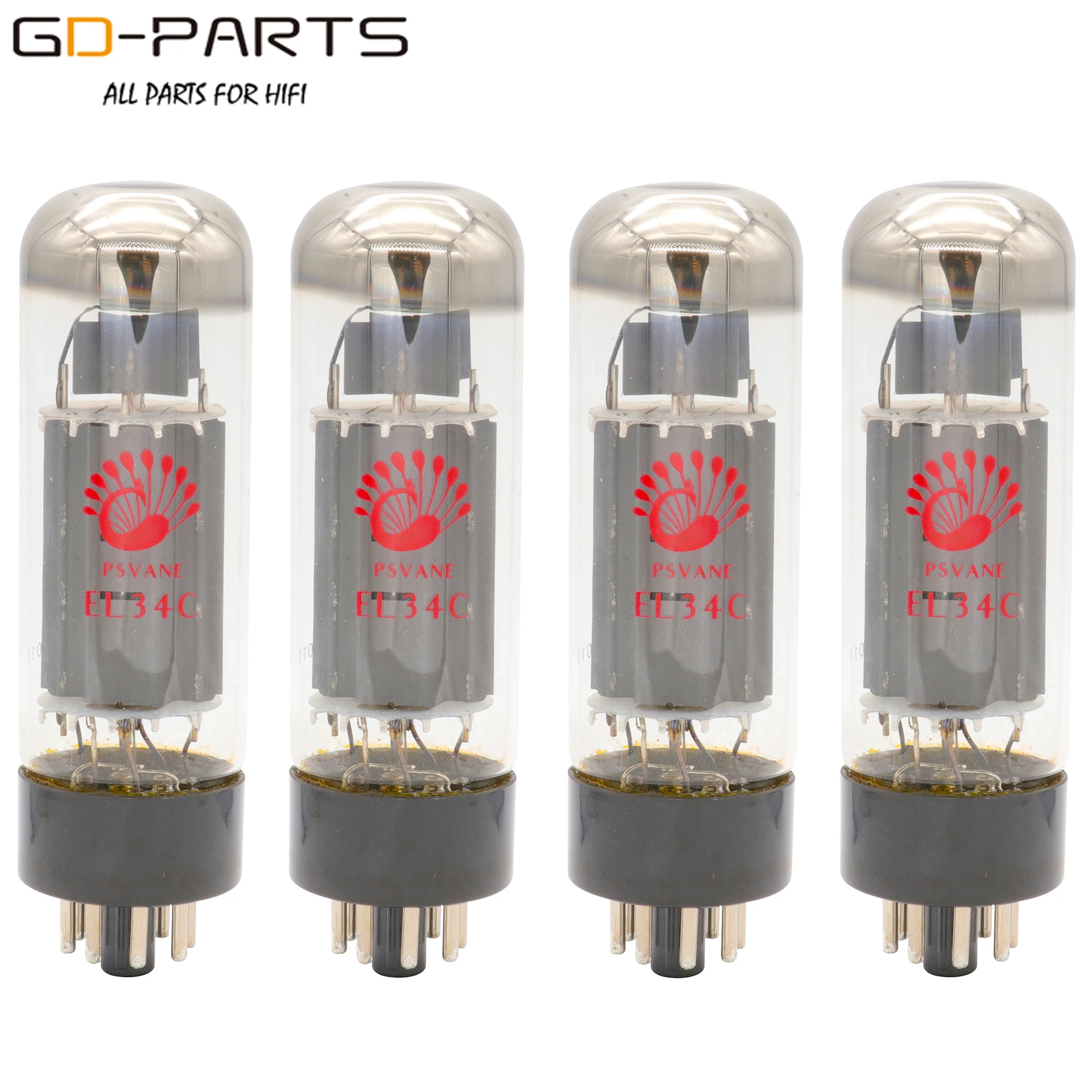

BRAND NEW PSVANE HIFI VACUUM TUBES EL34
Item No.: HIFI EL34C
Replace EL34, 6CA7
UH: 6.3V
IH: 1.5A
Max.Nominal Value:
Anode voltage: 800V
Anode Power dissipation: 25W
Anode current: 150mA
Ua…………………………… 250 V
Ug2……………………………250 V
Ug3…………………………… 0 V
-Ug1…………………………12.2 V
Ia…………………………… 100 mA
Gm…………………………… 11 mA/V
ri…………………………… 15 kΩ
μg1-g2………………………11
